64 CHANNEL ANALOG MULTIPLEXER

64 CHANNEL ANALOG MULTIPLEXER

MODEL 491AMUX1-64

64 Single ended or 32 Differential Channels.
0-5 Volt input, ±2.5 Volt input, or ±10 Volt input range. (Consult factor for non-standard input range.).
Over and under voltage protection of ±30 Volts on each analog input.
Small size.
Standard CMOS/TTL channel select inputs.
Any gain from 0.5 to 1000, up to 3 gains available on 3 separate outputs (factory set).
±8 to ±18 Volt supply, or 28 Volts ±Volt supply.
Low Power Consumption: <20mA.
High Speed Switching: Settles to 0.01% within 1 micro second.
Channel Bandwidth: DC to 1 MHZ.
Channel Separation: 70dB minimum.
Input Impedance: 100 Mohms <7pf.
Back Current: <100 nana amps.

ENVIRONMENTAL AND MECHANICAL

Operating Temperature:	-40°C to +85°C
Storage Temperature:	-55°C to +125°C
Humidity:	Relative humidity of 85% for two hours at 65°C.
Altitude:	Unlimited.
Vibration:	20g's RMS from 5 to 2000Hz in each major axis.
Acceleration:	Constant acceleration of 100g's in each major axis.
Shock:	100g's for 10m sec in each major axis.

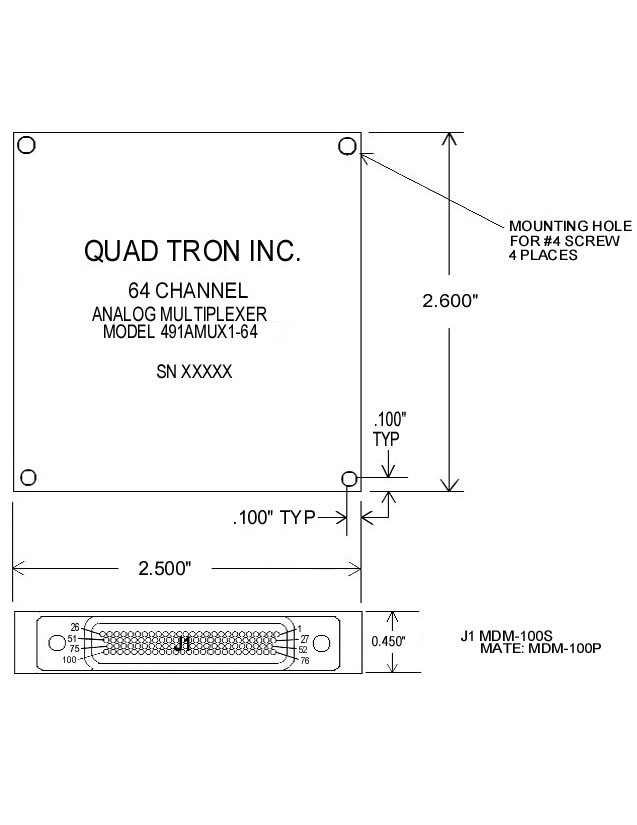

Consult factory for lower cost packaging options or smaller size versions. Solderable ceramic substrate available: 2.220 x 1.740 x 0.125
